640 × 512 Low Background ROIC

FLIR ISC0002

Se rendre sur la page Support

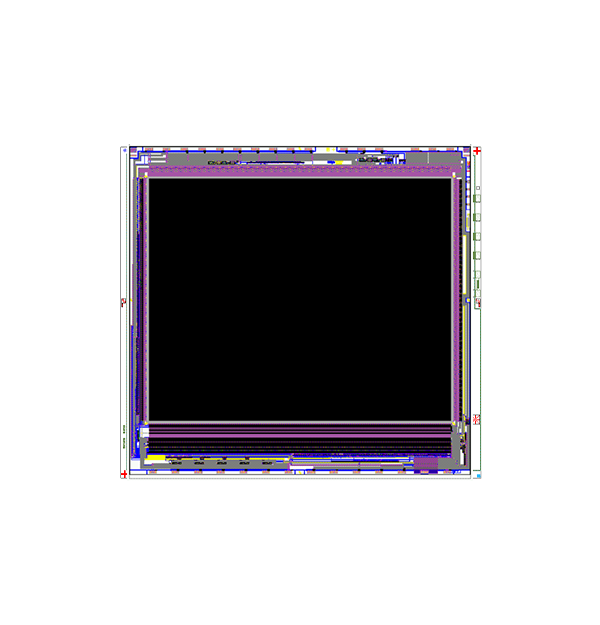

product image

The ISC0002 is a 640 × 512 format, 25-micron pitch device, designed for low background applications. A CTIA front end circuit is used and the readout noise in the high gain mode is less than 70 electrons. Compatible with P-on-N detectors such as InGaAs, SLS and MCT, this large format ROIC supports the same advanced features as the other standard ROICs, snapshot mode, adjustable integration time and gain, skimming, power and current adjustments, and additionally supports selectable integration capacitors (39K or 1.9M electrons).

Contacter le service commercial
Contacter le service commercial

Vous voulez plus d'informations sur ce produit ?

Appelez le 970 349 5045 pour parler à un expert.

Documents connexes

FLIR ISC0002
