Intelligent thermal camera for public transportation safety

ITS-Series Rail

Modèle: ITS-617 RAIL, 17° FOV
Se rendre sur la page Support

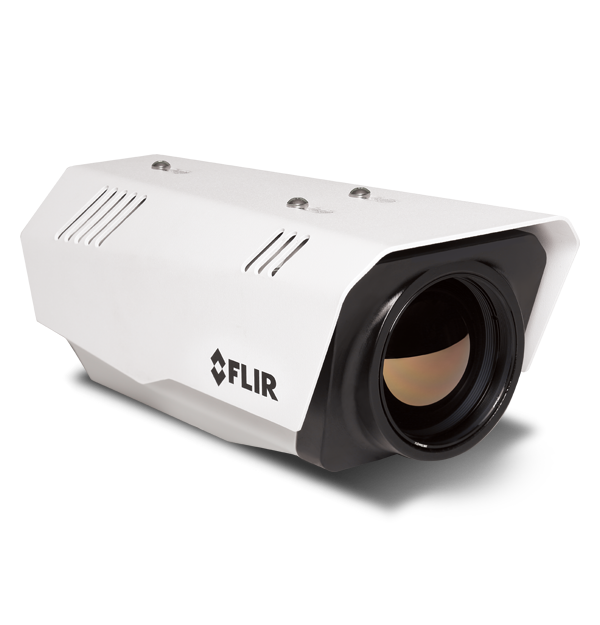

product image

The FLIR ITS-Series Rail is an integrated thermal camera and detector for people and obstacle detection in public transportation environments. The FLIR ITS-Series Rail camera does not need light to operate, but uses thermal energy to detect vehicles, people and large animals in the darkest of nights, over a long range and in the most difficult weather conditions. The result is reliable, 24/7 detection for a wide range of applications.

Prevent accidents and infrastructure damage with thermal cameras

  • Platform, tunnel and track safety

    FLIR ITS-Series Rail provides reliable detection of people falling off a platform, entering a tunnel or walking on rail tracks.

  • Obstacle detection at level crossings

    FLIR ITS-Series Rail detects vehicles that got stuck on a level crossing and are blocking the passage of an approaching train.

  • Fire detection in tunnels

    FLIR ITS-Series Rail measures the temperature of any object in its field of view, which allows it to detect fires at an early stage.

Spécifications
Présentation
Chauffage automatique
Clears ice from windows Automatic deicing
Type de détecteur
Focal Plane Array (FPA) , Uncooled VOx microbolometer
Résolution
640 x 480
Alimentation
Tension d’entrée
11-44 VDC (no lens heaters) 16-44 VDC (with lens heaters) 14-32 VAC (no lens heaters) 16-32 VAC (with lens heaters) PoE (IEEE 802.3af-2003) PoE+ (IEEE 802.3at-2009)
Consommation électrique
5W nominal at 24VDC (21W peak) 8VA nominal at 24VAC (29VA peak)
Protection contre les pics de tension sur les lignes de transmission de signaux
EN 55024:2010 and 55022:2010 to 4.0kV
Analyses
Détection des incendies
Early fire detection in tunnels
Sécurité de passages à niveau
Detection of stopped vehicles on a level crossing
Surveillance des voies
Automatic detection of people on and alongside the tracks with advanced train filtering
Connexions et communication
Sortie vidéo analogique
NTSC or PAL
API réseau
ONVIF Compatible
Protocoles pris en charge
IPV4, HTTP, UPnP, DNS, NTP, RTSP, RTCP, RTP, TCP, UDP, ICMP, IGMP, DHCP, ARP, SNMP
Vidéo sur Ethernet
Two independent channels of H.264 or M-JPEG
Données image et optiques
Traitement de l’image
Automatic Gain Control (AGC), Digital Detail Enhancement (DDE)
Type d’objectif
Focal Length 35 mm, Field of View 17° x 14°
Gamme spectrale
7.5 to 13.5 µm
Résolution du flux vidéo
D1: 720x576, 4CIF: 704x576, Native: 640x512, Q-Native: 320x256, CIF: 352x288, QCIF: 176x144
Spécifications environnementales et validations
FCC
FCC Part 15, Subpart B, Class B
Indice IP
IP66 & IP67
Plage de températures de fonctionnement
-50°C to 70°C (continuous operation) -40°C to 70°C (cold start)
Résistance aux chocs
MIL-STD-810F "Transportation"
Protection contre les pics de tension sur lignes d'alimentation CA
EN 55024:2010 and 55022:2010 to 4.0kV on AC aux power lines
Vibration
IEC 60068-2-27
CE
EN 55022 Class B
